Yolo26

Yolo26 is a cutting-edge, state-of-the-art (SOTA) YOLO model. Custom docker images with additional tools are available from here:

https://github.com/waikato-datamining/pytorch/tree/master/yolo26

Prerequisites#

Make sure you have the directory structure created as outlined in the Prerequisites.

Data#

In this example, we will use the American Sign Language Letters dataset, which consists of sets of images of hands, one per letter in the English alphabet (26 labels).

Download the dataset from the following URL into the data directory and extract it:

https://datasets.cms.waikato.ac.nz/ufdl/data/american-sign-language-letters/american-sign-language-letters-voc.zip

Once extracted, rename the voc directory to sign-voc.

Now we have to convert the format from VOC XML into YOLO. We can do this by using the image-dataset-converter library. At the same time, we can split the dataset into train, validation and test subsets.

From within the applied_deep_learning directory, run the following command:

docker run --rm -u $(id -u):$(id -g) \
  -v `pwd`:/workspace \
  -t waikatodatamining/image-dataset-converter:0.0.4 \
  idc-convert \
    -l INFO \
    from-voc-od \
      -i "/workspace/data/sign-voc/*.xml" \
    to-yolo-od \
      -o /workspace/data/sign-yolo-split \
      --labels labels.txt \
      --labels_csv labels.csv \
      --split_names train val test \
      --split_ratios 70 15 15

Finally, download the dataset26.yaml file, place it in the sign-yolo-split directory. It contains information about the dataset directory, the splits and the class labels. If you want to adapt this configuration for different labels, then you can automatically transform the labels.csv file into a numbered list using the following command:

grep -v "Index" labels.csv | sed s/","/": "/g | sed s/^/"  "/g

Training#

For training, we will use the following docker image:

waikatodatamining/pytorch-yolo26:8.4.16_cuda12.6

If you do not have a GPU, you can use the CPU-only image:

waikatodatamining/pytorch-yolo26:8.4.16_cpu

The training script is called yolo26_train, for which we can invoke the help screen as follows:

docker run --rm -t waikatodatamining/pytorch-yolo26:8.4.16_cuda12.6 yolo26_train help

Since we will be performing transfer larning, we need to download a base model to use for training. Yolo26 offers different models, which differ in speed and accuracy. We will use the fastest one called yolo26n.pt ("nano") from the v1.1 release:

https://github.com/ultralytics/assets/releases/download/v8.4.0/yolo26n.pt

Download it and place it in the models directory.

It is good practice creating a separate sub-directory for each training run, with a directory name that hints at what dataset and model were used. So for our first training run, which will use mainly default parameters, we will create the following directory in the output folder:

sign-yolo26

Since the image size should be a multiple of 32, we use 640 for this experiment.

Kick off the training with the following command:

docker run --rm \
  -u $(id -u):$(id -g) \
  --shm-size 8G \
  --gpus=all \
  -v `pwd`:/workspace \
  -v `pwd`/cache:/cache \
  -v `pwd`/config:/config \
  -t waikatodatamining/pytorch-yolo26:8.4.16_cuda12.6 \
  yolo26_train \
  model=/workspace/models/yolo26n.pt \
  data=/workspace/data/sign-yolo-split/dataset26.yaml \
  imgsz=640 \
  exist_ok=true \
  project=/workspace/output/ \
  name=sign-yolo26 \
  amp=false \
  batch=4 \
  epochs=20

Predicting#

Using the yolo26_predict_poll script, we can batch-process images placed in the predictions/in directory as follows (e.g., from our test subset):

docker run --rm \
  -u $(id -u):$(id -g) \
  --gpus=all \
  -v `pwd`:/workspace \
  -v `pwd`/cache:/cache \
  -v `pwd`/config:/config \
  -t waikatodatamining/pytorch-yolo26:8.4.16_cuda12.6 \
  yolo26_predict_poll \
  --model /workspace/output/sign-yolo26/weights/best.pt \
  --prediction_in /workspace/predictions/in \
  --prediction_out /workspace/predictions/out

Notes

  • You can view the predictions with the ADAMS Preview browser: OPEX

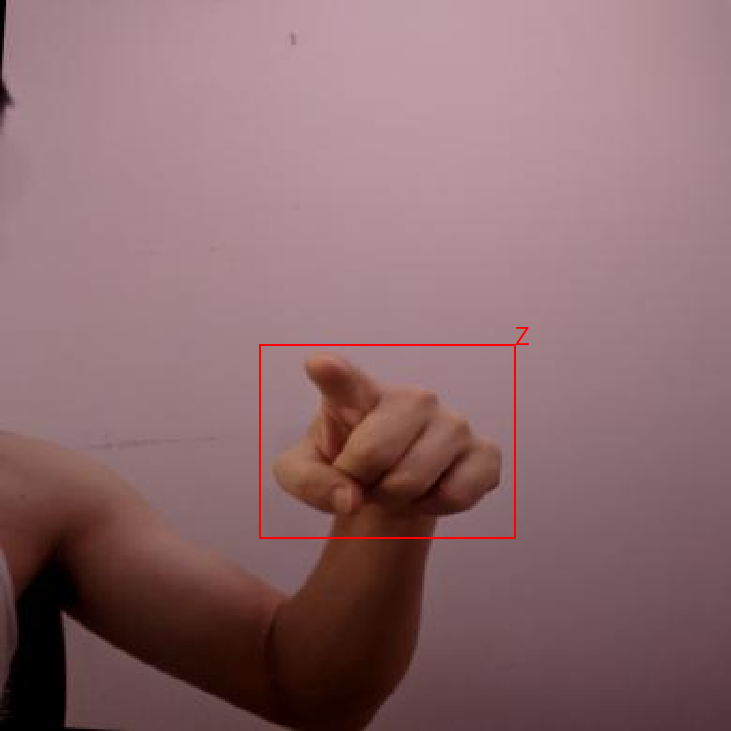

Example prediction

Screenshot

Screenshot

Exporting to ONNX (optional)#

You can export the trained model also to ONNX using the yolo26_export script:

docker run --rm \
  -u $(id -u):$(id -g) \
  --gpus=all \
  -v `pwd`:/workspace \
  -v `pwd`/cache:/cache \
  -v `pwd`/config:/config \
  -t waikatodatamining/pytorch-yolo26:8.4.16_cuda12.6 \
  yolo26_export \
  model=/workspace/output/sign-yolo26/weights/best.pt \
  format=onnx \
  opset=13 \
  simplify

This will create a file called best.onnx in the weights directory.
