Depth estimation

This example shows how to apply a MiDaS monocular depth estimation model to images from a video and displays the depth information as grayscale images.

Requirements

NB: No GPU required.

Additional image-dataset-converter libraries:

• image-dataset-converter-imgvis
• image-dataset-converter-video

Data

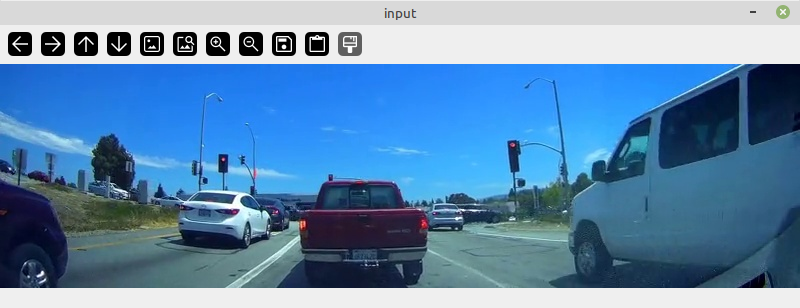

Input

Output

Preparation

NB: Place all the downloads in the current directory

• Download the dashcam01.mp4 video from the BoofCV project
• Download the dpt_levit_224 model (for more, see here)

• The host machine must have a Redis server instance running. Two options:

  1. Install it natively via sudo apt-get install redis (and then restart it with sudo systemctl restart redis)
  2. Spin up a docker container with: docker run --net=host --name redis-server -d redis

MiDaS model

The following command launches the MiDaS model via the container's midas_predict_redis command, running on the CPU:

docker run \
    --net=host -u $(id -u):$(id -g) \
    -v `pwd`:/workspace \
    -v `pwd`/cache:/.cache \
    -it waikatodatamining/midas:3.1_cpu \
  midas_predict_redis \
    --redis_in images \
    --redis_out predictions \
    --model_weights /workspace/dpt_levit_224.pt \
    --model_type dpt_levit_224 \
    --prediction_format numpy

image-dataset-converter

The following pipeline loads every 2nd frame from the dashcam01.mp4 video, tees off the input image into its own viewer, then obtains the depth information from the MiDaS model (using the Redis backend), turns the predictions into grayscale images and then displays them in another viewer window:

idc-convert \
  -l INFO \
  from-video-file \
    -i ./dashcam01.mp4 \
    -n 2 \
    -t dp \
  tee -f "image-viewer -t input -p 0,50 -s 800,224 -d 1" \
  redis-predict-dp \
    --channel_out images \
    --channel_in predictions \
    --data_format numpy \
    --timeout 1.0 \
  depth-to-grayscale \
    -t dp \
  any-to-rgb \
  image-viewer \
    -t output \
    -p 0,400 \
    -s 800,224 \
    -d 1
